Identification of phenantrene in a GC/MS analysis using the 'Find Scan' features of CSI-Diff-ms

The Find Scan feature provides a simple way to find an etalon mass spectrum or similar mass spectra (isomers) inside a MS measurement with multiple scans, based on the calculation of the etalon and scan similarity. The method can be used to check if a substance (or isomers) is present in the analyzed MS data.

The presented application identifies the phenantrene in a GC/MS analysis of a complex probe using Chemical Structure Identification based on Differential Mass Spectra (CSI-Diff-ms v2.5 or above).

In order to identify the phenantrene structure using CSI-Diff-ms, the following steps are required:

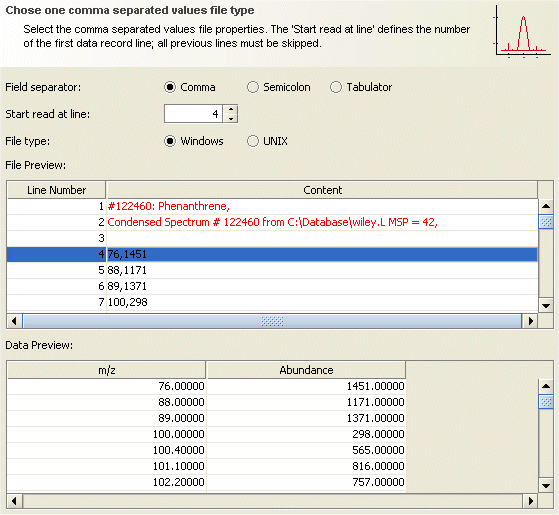

1. The import and open of the reference mass spectrum, e.g. phenantrene.csv file. The reference mass spectrum can be previously created by CSI-Diff-ms using a known probe, or a reference external mass spectrum created with other software tools can be used.

Click on image in order to enlarge.

Click to enlarge

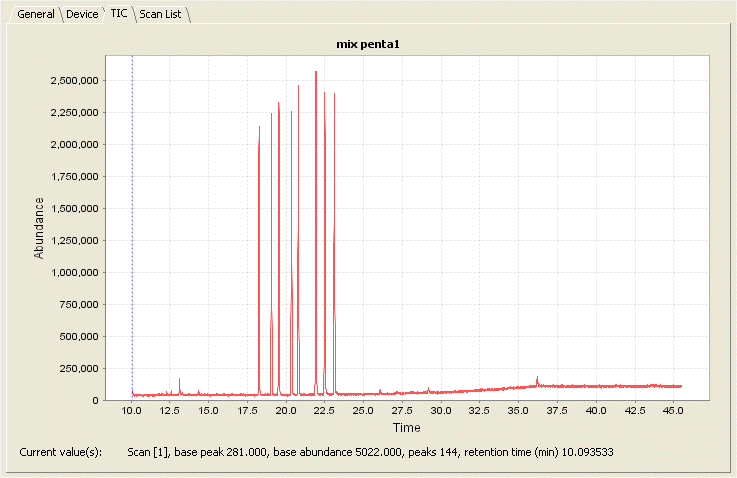

2. Open and select the MS analysis, e.g., the GC/MS analysis of an aromatic compounds mixture [1].

Click on image in order to enlarge.

Click to enlarge

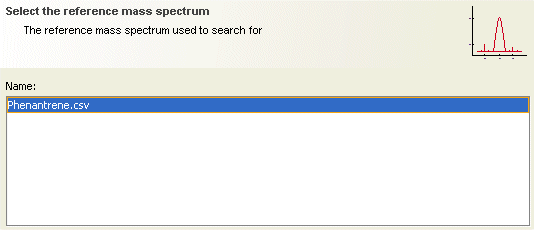

3. Select the reference mass spectrum for the searched substance and launch the processing using the Calculate -> Find Scan command.

Click on image in order to enlarge.

Click to enlarge

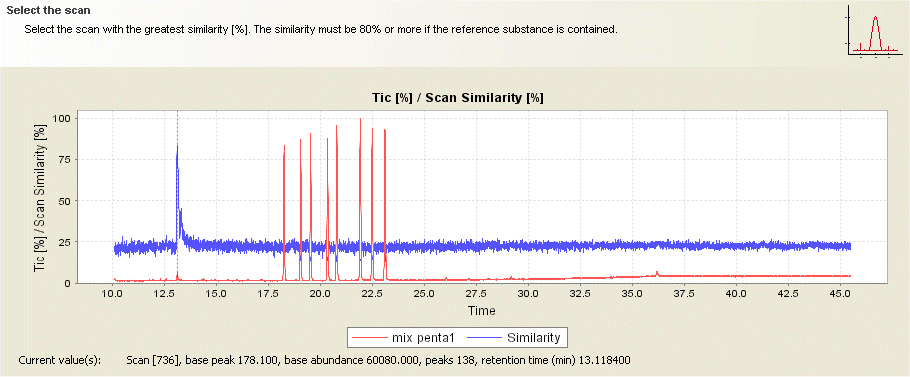

4. The processing results are presented into the following graphic. The peak of similarity mark the presence of phenantrene, retention time (min) 13.11 and 83.31% similarity.

Click on image in order to enlarge.

Click to enlarge

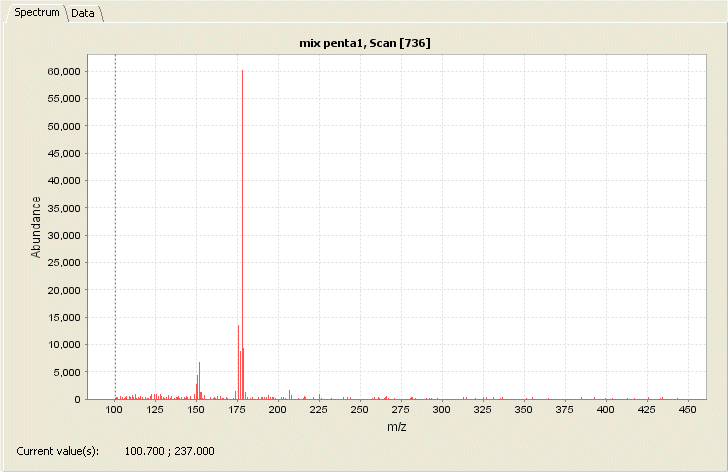

5. From the result dialog select the scan with the maximal similarity. If more isomers are included in the experiment data, multiple similarity peaks can be obtained.

Click on image in order to enlarge.

Click to enlarge

[1] Courtesy of Dr. Adrian Covaci, Toxicological Center, University of Antwerp
